TubeSpin® Bioreactor 50 with Septum

The TubeSpin® Bioreactor 50 with Septum is intended for use in laboratory automation applications such as: robotic use for sterile media and solution exchange or harvesting of cell based products, e.g. with the Tecan Freedom EVO®.

Features of TubeSpin® Bioreactor 50 with Septum

  • Re-closable cross-slit septum for multiple entries
  • Compatible with injection needles up to 2.1 mm (12 gauge) diameter
  • Working volume
  • Barcode 128 on each tube for efficient automated tracking (coding: lot number plus number makes each tube unique. Ex: 2013000099999)
  • Sterile gas exchange through vents above hydrophobic PTFE membrane in screw cap
  • Conical tube fits standard 50 ml centrifuge adapters, max. centrifugal force 15'500 x g

Applications:

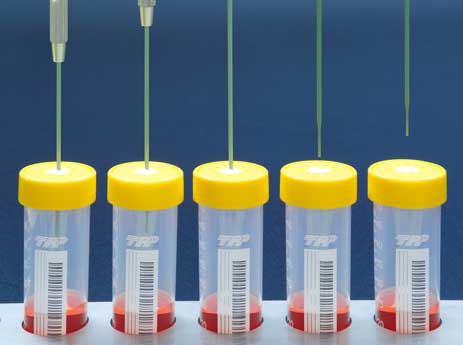

  • Laboratory automation: multiple robotic entry with injection needles and cannulas through re-closable cross-slit septum
  • Sterile media and solution exchange and removal of cell-based products enabled by septum surface sterilization
  • Elimination of tedious automation of screwing/unscrewing during robotic automation by access through the septum
  • Centrifugation of suspension cells without prior removal of solution from the tube

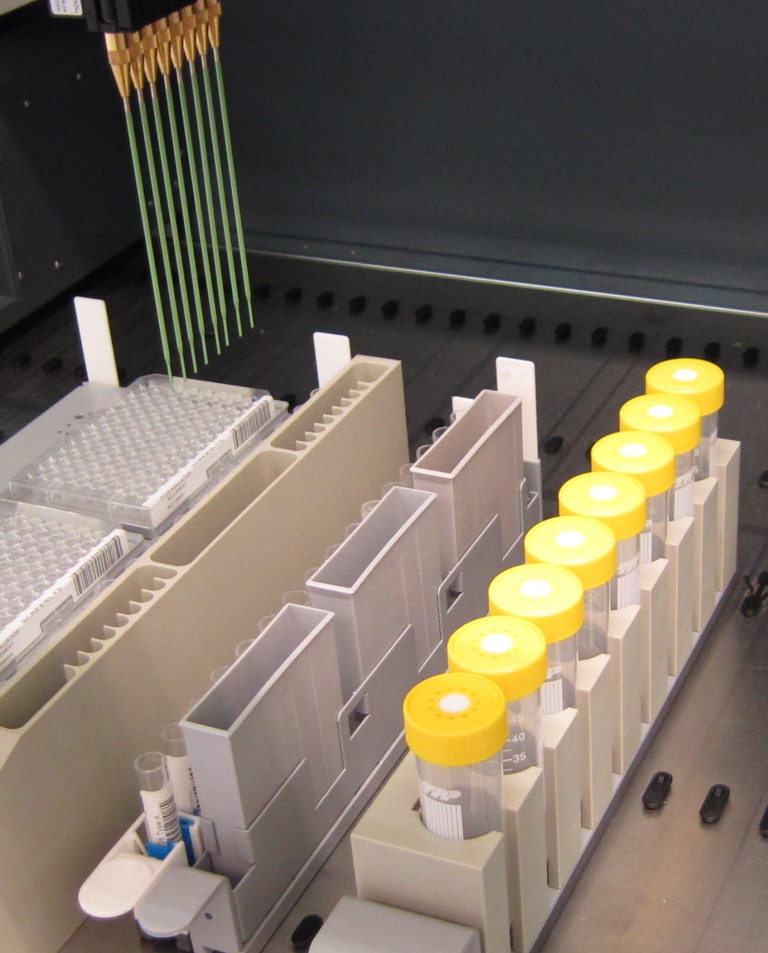

TubeSpin® Bioreaktor with septum on a Freedom EVOlyzer® equipped with a 8-channel liquidhandling arm with stainless steel fixed tips. Photo courtesy of Tecan Group LTD

Good to know!

Downloads

TypeProduct No.VersionVolume (ml)Dimensions
(mm)
MaterialMax
g Force
Qty / BagQty / CaseCase
(kg)
86050 Septum 50 30 x 115 PP/PE 15 500 20 180 3.1

Opening
Septum cross-slitted, 11 openings in screw cap above PTFE membrane
